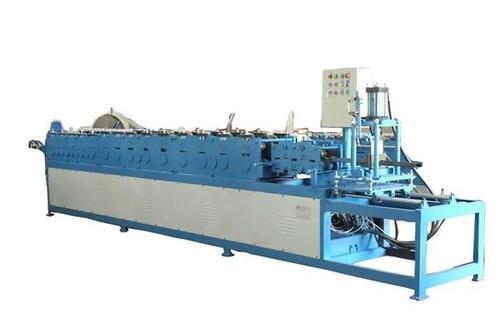

C Purlin Roll Forming Machine

C Purlin Roll Forming Machine

We are one of the leading organization occupied in providing brilliant quality CGypsum Ceiling Section Machines, which are producing by using high grade material.we designed a lots kinds of C & Gypsum Ceiling Section Machine. due to the high graded superiority and our client fulfillment,The product by C&Gypsum Ceiling Section Machine has many benefit such as beautiful and colorful outside, light weigh, long life durability. It was widely used in every corn world wide. we can develop special C Purlin Roll Forming Machine as per customer requirement.

  • D Coiler 1 ton cap.
  • Entry Gate with
  • Roll Forming Line with 14 station , 7 Gear Boxes & 10 H.P. electrical.
  • Power press 20 tone,
  • Feeder
  • Control Panel semi auto (servo and proxy)
  • Cutting Unit (Hydro.)

Technical Specifications

  • Maximum sheet width that can be formed : 170mm
  • Maximum sheet thickness in CRCA Strips that can be formed : 2mm
  • Horizontal distance between shafts : 350mm
  • Number of forming stations : 18 nos
  • Vertical station : 7 nos
  • Total HP for Line : 17
  • Speed of the machine : 3.5mt/minit
  • Size of machine : 5700 x 1000 x 1100 mm

Mandrel Uncoiler

  • Coil weight : 1 MT Max
  • Coil width : 400 MM
  • Coil bore : 450 MM min, 510 MM max dia
  • Mandrel movement : Manually adjusted
  • Back Tension : Manually adjusted

Entry Gate

Entry gate will be provided for movement of sheet to roll former.

Main Base

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts

The roll shafts dia. 60mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive

The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 10 HP motor

Tooling

One set of Tooling with EN31 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.

Feeder

  • Shaft Dia. - 60 mm
  • Inner - 200 mm
  • Material - EN 31
  • Motor H.P. - 1
  • Gear box - 1

Punching Press

  • Capacity - 20 tone
  • Motor H.P. - 3

Cutting Unit (Hydro)

Hydraulically operated power pack along with cutting die with 3 HP electrical.
