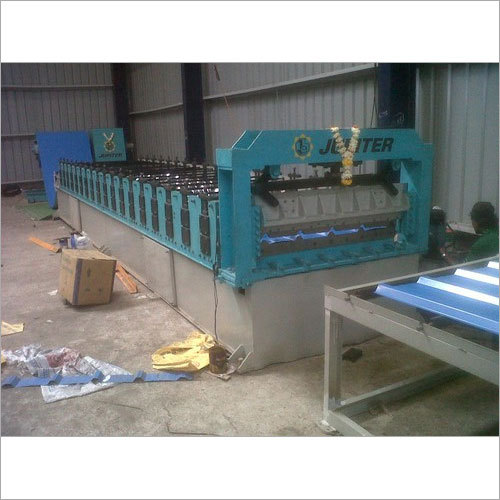

Corrugated Roll Forming Machine

Corrugated Roll Forming Machine

We are indulged in the manufacturing and exporting of Corrugated Sheet Roll Forming Machine. These products are designed to reduce man power and stable steel base design. These machines are used in industrial sectors and are available in market at Compititive Rates. These products equipped with various features including en31 material hafts, elecon gear box , abb motors and more. This forming line has no limit on processing length; you can set a program on the computer control according to your requirement

  • D coiler 5 ton cap.
  • Entry Gate with
  • Roll Forming Line with 22 station , 10 H.P. electrical.
  • Control Panel semi auto
  • Cutting Unit (Hydro.)

Technical Specifications

  • Maximum sheet width that can be formed : 1450 mm
  • Maximum sheet thickness in PPGI/PPGL that can be formed : 0.8 mm
  • Horizontal distance between shafts : 500mm
  • Number of forming stations : 22 nos.
  • Total HP for Line : 15
  • Speed of the machine : 22m-25m/min
  • Size of machine : 32 Feet
  • Weight of machine Approx : 11 Ton

Mandrel Uncoiler

  • Coil weight : 5 MT Max
  • Coil width : 1450 MM
  • Coil bore : 450 MM min, 510 MM max dia.
  • Mandrel movement : Manually adjusted
  • Back Tension : Manually adjusted

Entry Gate

Entry gate will be provided for movement of sheet to roll former.

Main Base

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts

The roll shafts dia. 70mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive

The drive to the roll former will be by means of a chain. The main drive will be provided by means of 10 HP motor

Tooling

One set of Tooling with EN grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.

Cutting Unit (Hydro)

Hydraulically operated power pack along with cutting die with 3 HP electrical.
